Ubiquiti UniFi Access Point Mesh Pro
Simultaneous, dual-band, 3×3 MIMO technology, 802.11ac dual-band access point, capable of speeds of up to 1750 Mbps.

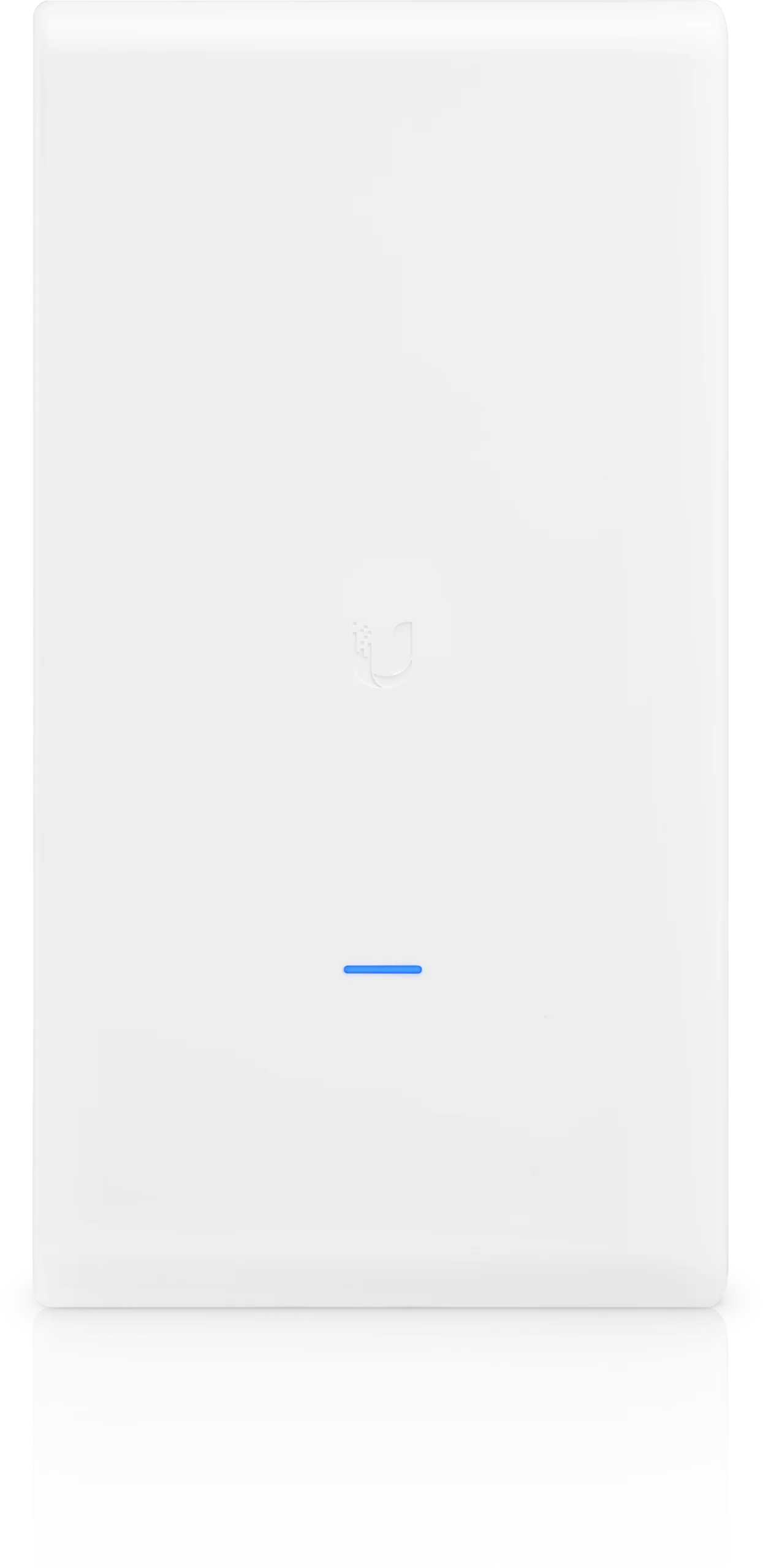

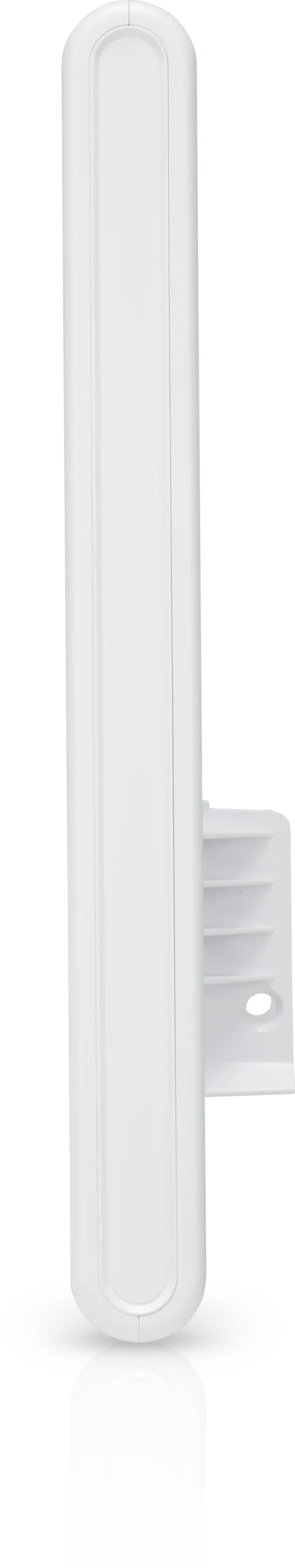

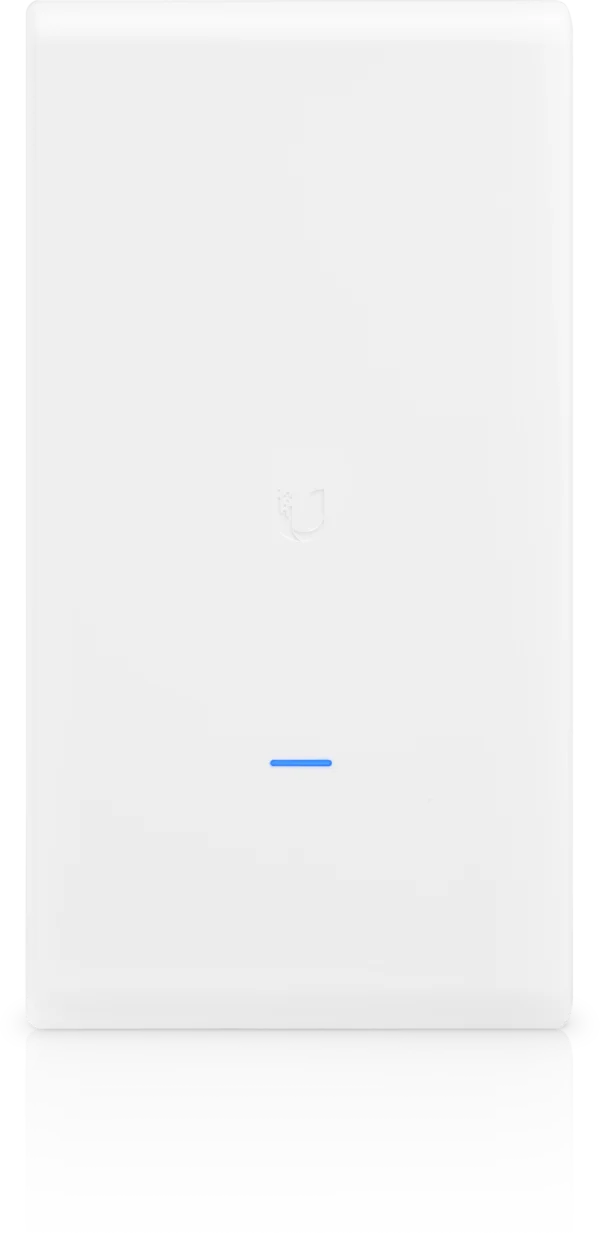

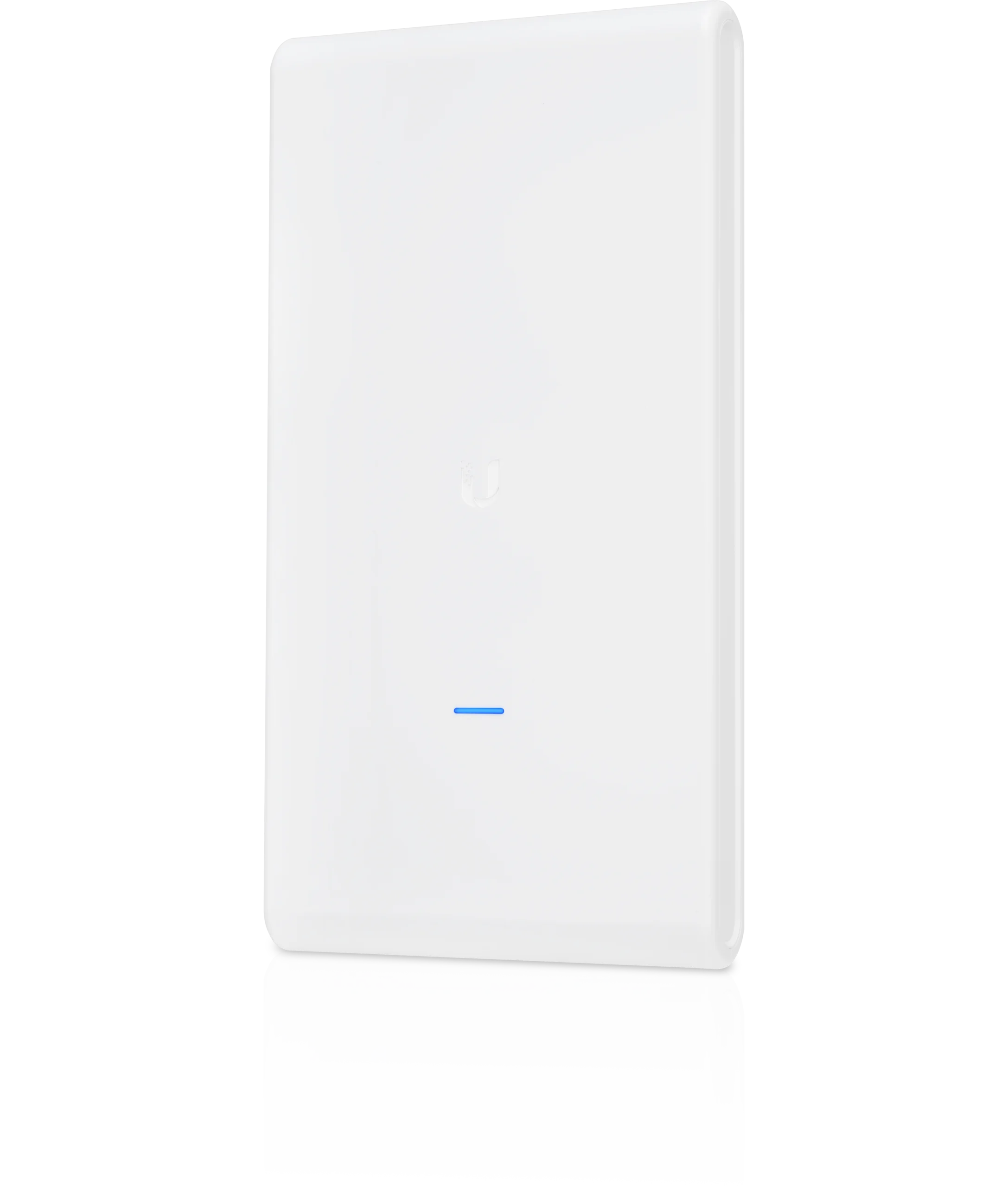

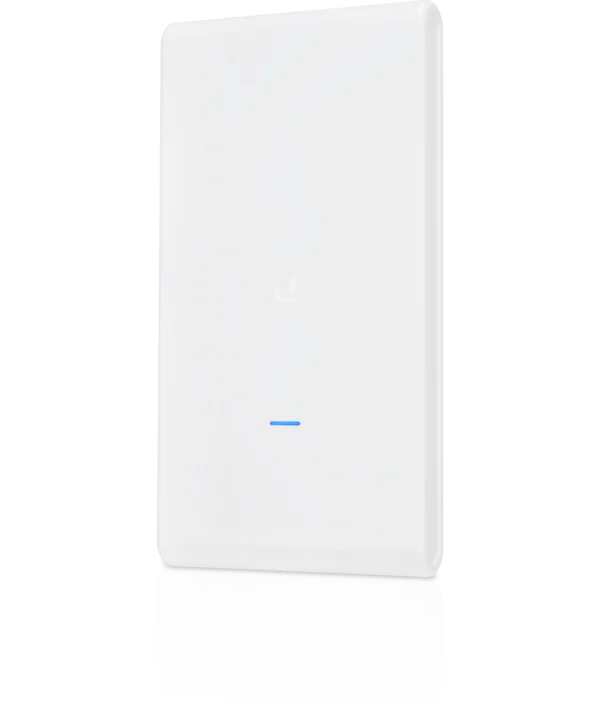

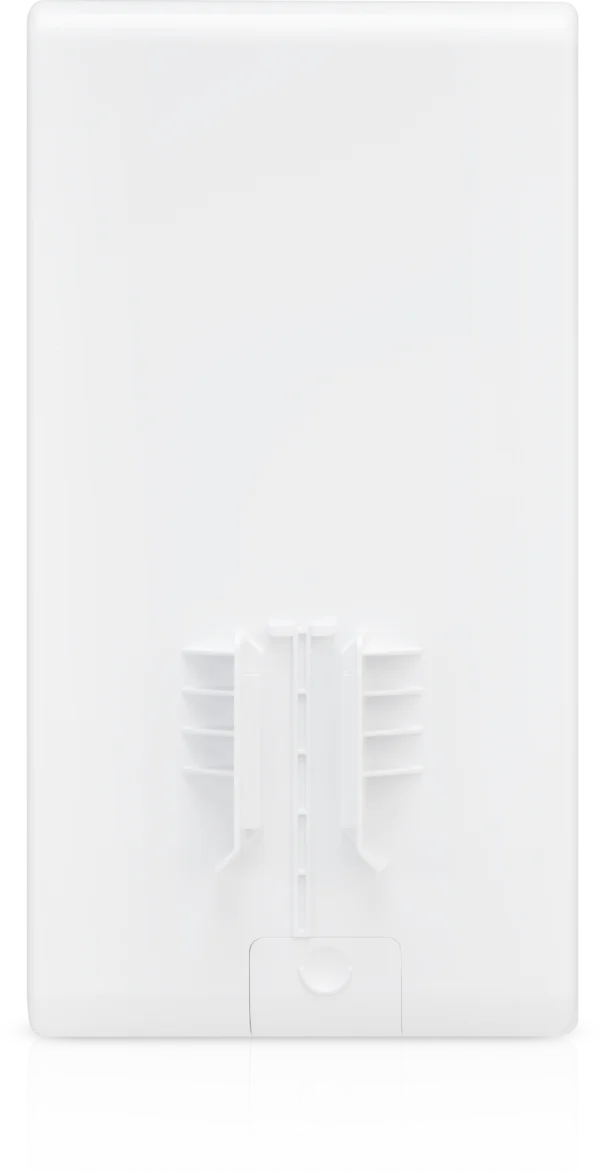

Expand your Wi-Fi network outdoors with the UniFi® AC Mesh Pro Access Point, part of the Ubiquiti UniFi Enterprise Wi-Fi System. The UAP-AC-M-PRO is a high-performance, outdoor, 3×3 MIMO, 802.11ac dual-band access point, capable of speeds of up to 1750 Mbps. It features a proprietary, MIMO-optimized, omni-directional Super Antenna for exceptional 360° coverage, providing symmetrical long-range communications of up to 183 meters.
* 5 packs do not come with PoE injectors.
| Access Point Mesh Pro | |
|---|---|
| Dimensions | 343.2 x 181.2 x 60.2 mm (13.51 x 7.13 x 2.37″) |
| Weight | 633 g (1.40 lb) |

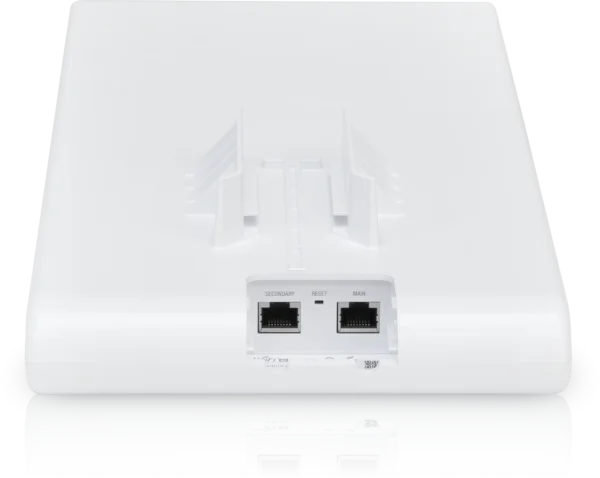

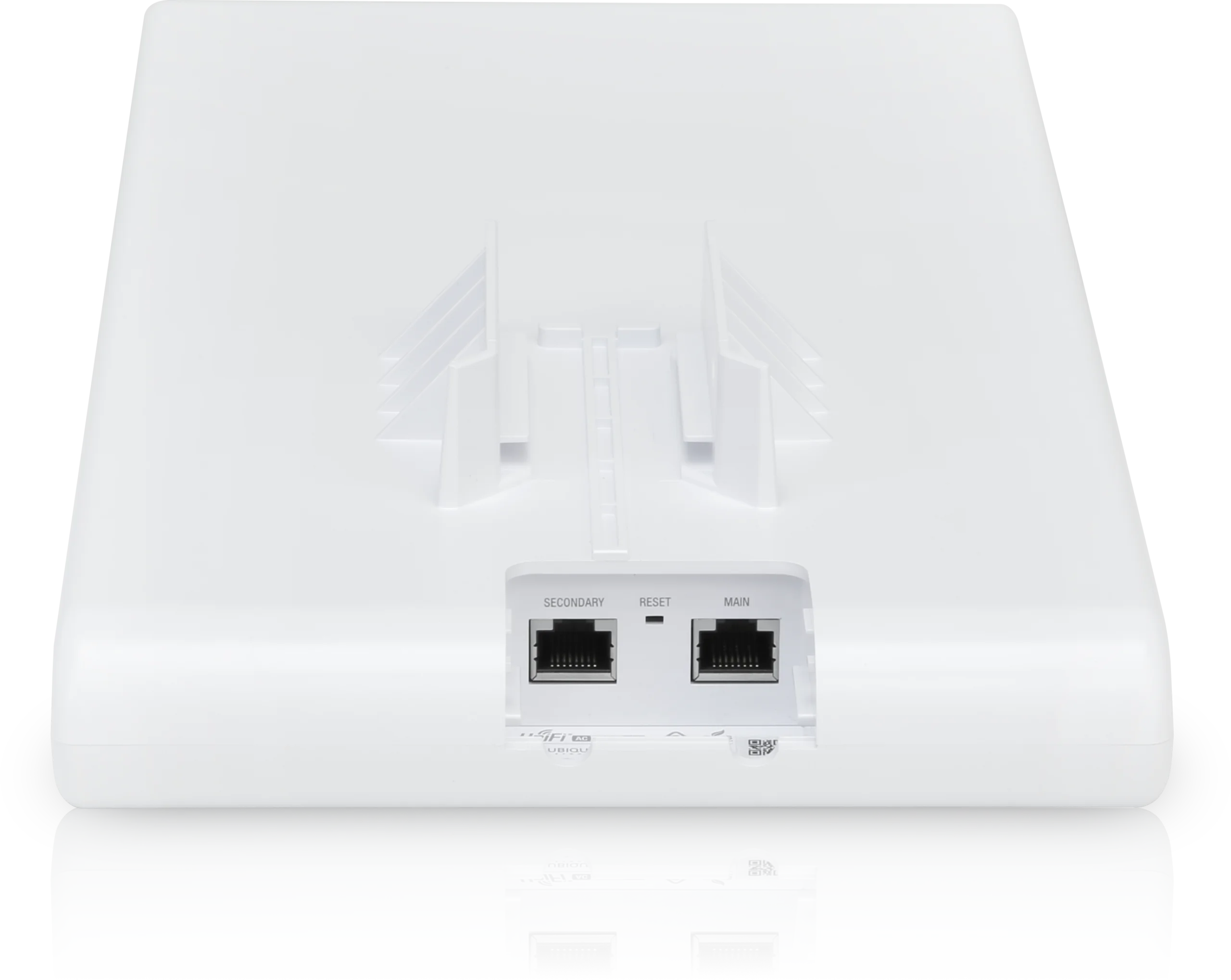

| Networking Interface | (2) 10/100/1000 Ethernet Ports |
| Ports | (2) 10/100/1000 Ethernet |
| Buttons | Reset |
| Antennas | 3 Dualband antennas |
| Wi-Fi Standards | 802.11a/b/g/n/ac |
| Power Method | 802.3af PoE |
| Power Supply | PoE Injector 48VDC -0.5A Gigabit |
| Maximum Power Consumption | 9W |
| Max TX Power | 22 dBm |
| BSSID | Up to Four per Radio |
| Power Save | Supported |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Certifications | CE, FCC, IC |

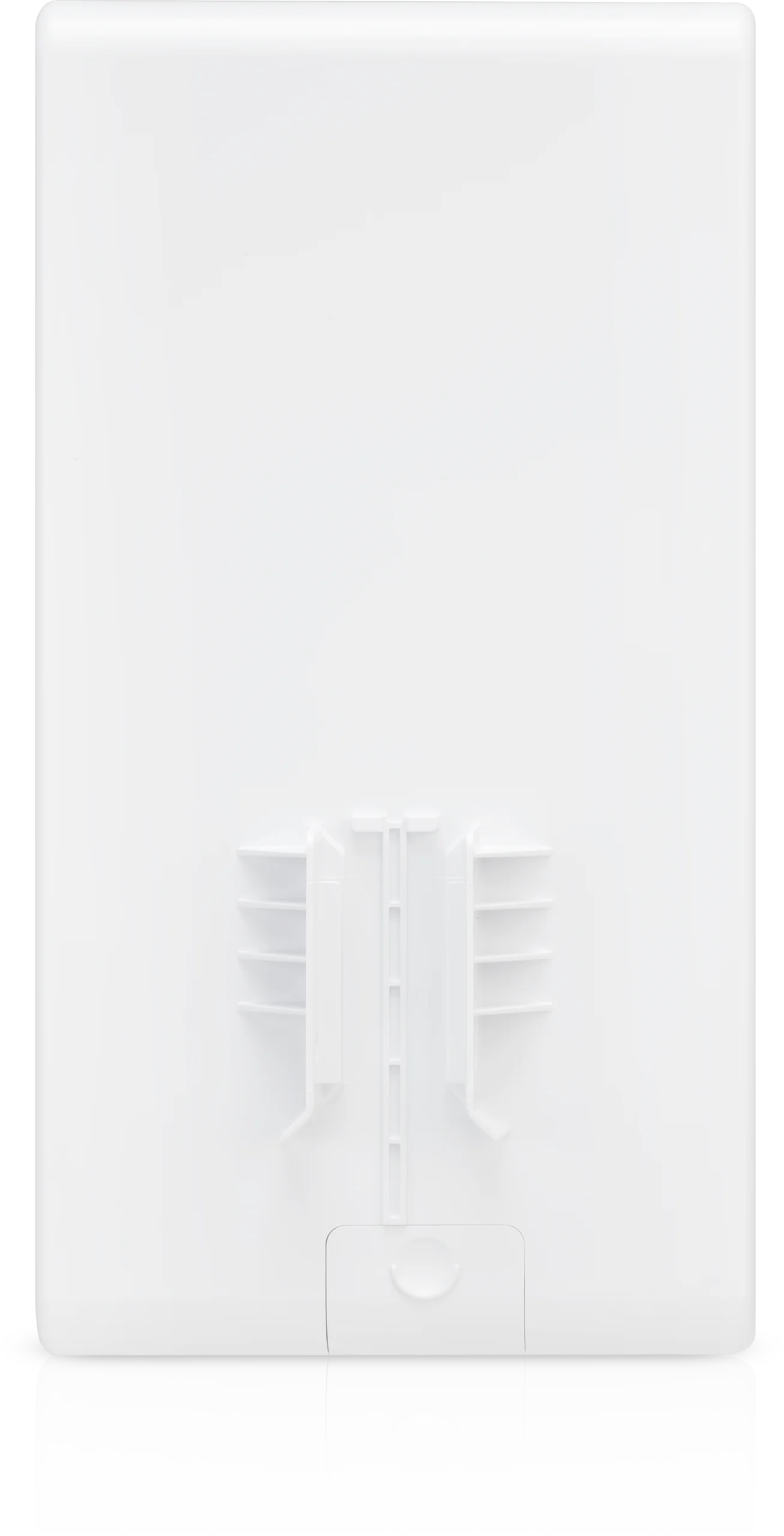

| Mounting | Wall/Pole (Pole Kit Included) |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Advanced Traffic Management | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 100+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1300 Mbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Source: Ubiquiti
Compatible with other UniFi products
