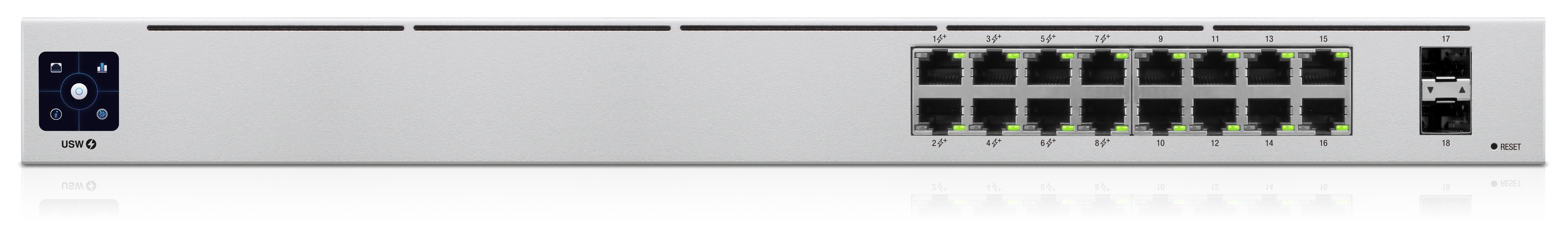

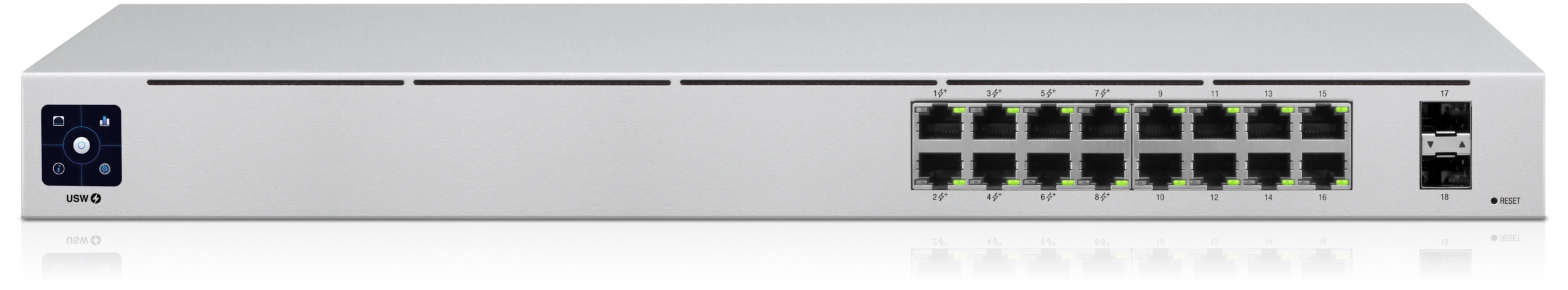

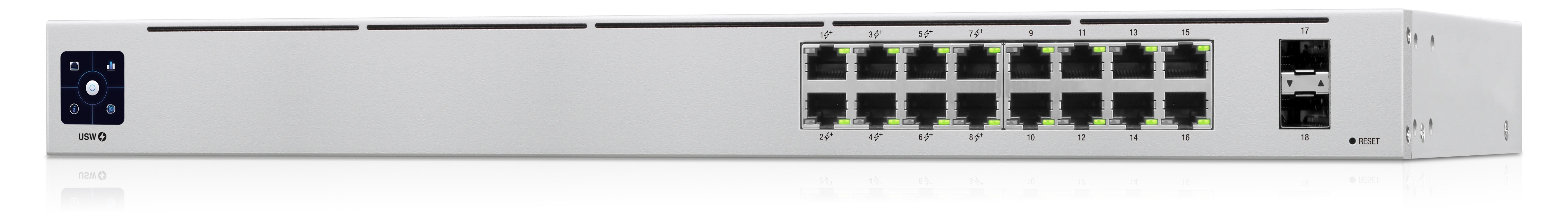

UniFi Switch 16 POE Gen2

384.69

The UniFi Switch 16 POE is a layer 2, PoE switch with (16) GbE RJ45 ports, including (8) 802.3at PoE+ ports, and (2) 1G SFP ports.

Uitverkocht

Email when stock is available

Add to Wishlist
Add to Wishlist

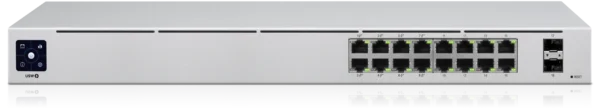

Ubiquiti UniFi Switch 16 POE

The UniFi Switch 16 POE is a layer 2, PoE switch with (16) GbE RJ45 ports, including (8) 802.3at PoE+ ports, and (2) 1G SFP ports.
The Switch 16 PoE (USW 16 PoE) is a fully managed switch with (16) GbE RJ45 ports, including (8) GbE, 802.3at PoE+ ports, and (2) 1G SFP ports. The versatile USW 16 PoE provides Gigabit PoE links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network. The switch also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights.

Additionally, with its 7.9″ depth, it’s easy to mount this compact, fanless switch in a SOHO rack cabinet. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:

      • (1) 1.3″ LCM color touchscreen with AR switch management
      • (8) GbE, 802.3at PoE+ RJ45 ports
      • (8) GbE RJ45 ports
      • (2) 1G SFP ports
      • 42W total PoE supply
      • Fanless, silent cooling

Managed with the UniFi Network application: Version 5.11.27 and later.

Switch 16 POE
Dimensions424.4 x 200 x 43.7 mm (16.71 x 7.87 x 1.72″)
Weight
With Rackmount Brackets
2.80 kg (6.17 lb)
2.89 kg (6.37 lb)
Interfaces
NetworkingManagement
(16) 10/100/1000 RJ45 Ports
(2) 1G SFP Ethernet Ports
Ethernet In-Band
Total Non-Blocking Throughput18 Gbps
Switching Capacity36 Gbps
Forwarding Rate26.78 Mpps
Power Method100-240VAC/50-60 Hz, Universal Input
Power SupplyAC/DC, Internal, 60W
Supported Voltage Range100 to 240VAC
Max. Power Consumption (Excluding PoE Output)18W
LEDs
RJ45 Data Ports
SFP Data Ports
PoE; Speed/Link/Activity
Link/Activity
ESD/EMP ProtectionAir: ± 16 kV, Contact: ± 12 kV
Shock and VibrationETSI300-019-1.4 Standard
Operating Temperature-5 to 40° C (23 to 104° F)
Operating Humidity10 to 90% Noncondensing
CertificationsCE, FCC, IC
PoE
Total Available PoE42W
PoE Interfaces

Ports 1-8

POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-)
Max. PoE Wattage per Port by PSE
802.3at
32W
Voltage Range 802.3af Mode44-57V
Voltage Range 802.3at Mode50-57V

Works with UniFi Network Controller

  • Manage Your Networks from a Single Control Plane
  • Intuitive and Robust Configuration, Control and Monitoring
  • Remote Firmware Upgrade
  • Users and Guests
  • Guest Portal/Hotspot Support

Source: Ubiquiti
Compatible with other UniFi products

Gewicht2800 g
Afmetingen200 × 442.4 × 43.7 mm
Ethernet (RJ45)

Switchtype

IPv6 ondersteuning

Switch layer

Switch eigenschappen

, , , , ,

Aantal VLANs

Throughput

Maximale bandbreedte

Stroomverbruik

Power-over-Ethernet-type

PoE-budget

Brand

Manufacturer
