UniFi Security Gateway Pro
Build your secure and flexible network with Ubiquiti UniFi® Security Gateway Pro, part of the UniFi Enterprise System. The Unifi Security Gateway Pro is a high-performance Gigabit router, delivering robust security and advanced routing features. Two combination SFP/RJ45 ports provide fiber connectivity options capable of speeds of up to 1 Gbps.
Advanced hardware-accelerated packet forwarding delivers 1+ million packets per second performance. The Unifi Security Gateway PRO offers four independent Ethernet ports with a full line rate of 4 Gbps.
- (2) Gigabit RJ45 Ethernet Ports
- (2) Gigabit Combination RJ45/SFP Ports
- 4 Gbps Full Line Rate Layer 3 Forwarding
- 1+ Million Packets per Second for 64-Byte Packets
- Sophisticated and Intuitive Graphical UI Control
- Integrated and Managed by UniFi Application
Optical Fiber Connectivity
The UniFi Enterprise Gateway Router offers two optional SFP ports for fiber connectivity to support backhaul applications.

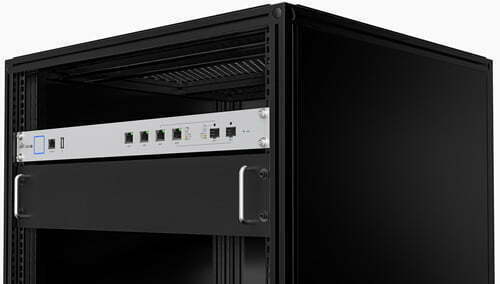

The UniFi Enterprise Gateway Router is housed in a durable, rackmount chassis.
Powerful Firewall Performance
The Gateway offers advanced firewall policies to protect your network and its data.
Convenient VLAN Support
The Gateway can create virtual network segments for security and network traffic management.
|Dimensions||484 x 44 x 164 mm (19.06 x 1.73 x 6.46″)|
|Weight||2.3 kg (5.07 lb)|
|Max. Power Consumption||40W|
|Power Supply||Internal AC/DC Power Adapter, 60W (24V, 2.5A)|
|Power Input||110 – 240VAC|
Serial Console Port
(1) RJ45 Serial Port|
(2) 10/100/1000 RJ45 LAN Ports
(2) 1 Gbps RJ45/SFP Combination WAN Ports
|Layer 3 Forwarding Performance|
Packet Size: 64 Bytes
Packet Size: 512 Bytes or Larger
4 Gbps (Line Rate)
|Processor||Dual-Core 1 GHz, MIPS64 with Hardware Acceleration for Packet Processing|
|System Memory||2 GB DDR3 RAM|
|On-Board Flash Storage||4 GB|
|Certifications||CE, FCC, IC|
|Operating Temperature||‐10 to 45° C (14 to 113° F)|
|Operating Humidity||10 to 90% Noncondensing|
