UniFi Switch Flex Utility

47.59

UniFi Switch Flex Utility

The USW Flex Utility is an outdoor weatherproof enclosure designed for use with the UniFi Switch Flex, USW-Flex.

Beschikbaarheid: 1 op voorraad

Add to Wishlist
Add to Wishlist

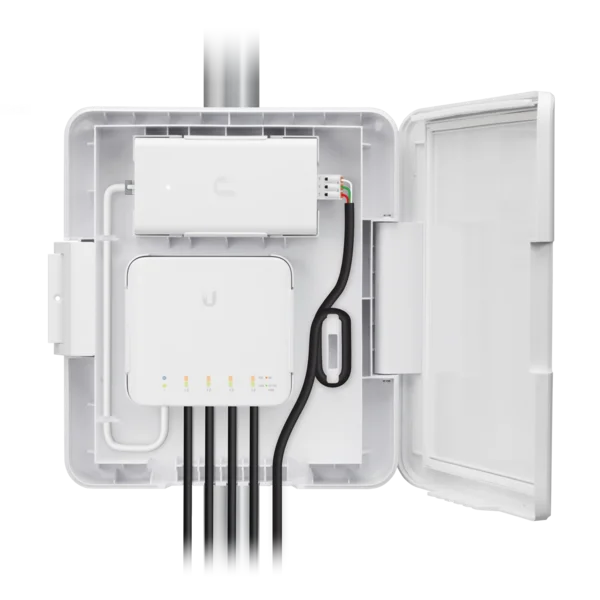

The Switch Flex Utility is an outdoor weatherproof enclosure designed for use with the Switch Flex, USW-Flex.
It includes an Ethernet patch cable and a 60W PoE adapter, which provides a maximum PoE budget of 46W. The USW Flex Utility can be easily mounted on a pole, provides clean cable management and screw lock for security.

Note: UniFi Switch Flex, USW-Flex, sold separately.

Switch Flex Utility
Dimensions (with Mount)249 x 218 x 60 mm (9.80 x 8.58 x 2.36″)
Weight (with Mount)740 g (26.10 oz)
USW-Flex-Utility 60W PoE Adapter
Dimensions118.5 x 63 x 34.7 mm
(4.66 x 2.48 x 1.36″)
Weight206 g
(7.27 oz)
Output Voltage54V, 1.11A
Rated Voltage100-240VAC
Input Current1.5A (Max.)
Efficiency> 86%
Output Ripple200mVpp
Line Regulation< 1%
Load Regulation< 3%
4-Pair PoweringPins 1, 2, 4, 5+ and Pins 3, 6, 7, 8-
Operating Temperature-20 to 60 ̊ C (-4 to 140 ̊ F)
Storage Temperature-30 to 70 ̊ C (-22 to 158 ̊ F)
Operating Humidity5 to 90%, Noncondensing
Surge Immunity4kV Difference and Common Mode

* To enable PoE output power, select Power Source PoE Injector in UniFi Application.

Source: Ubiquiti
