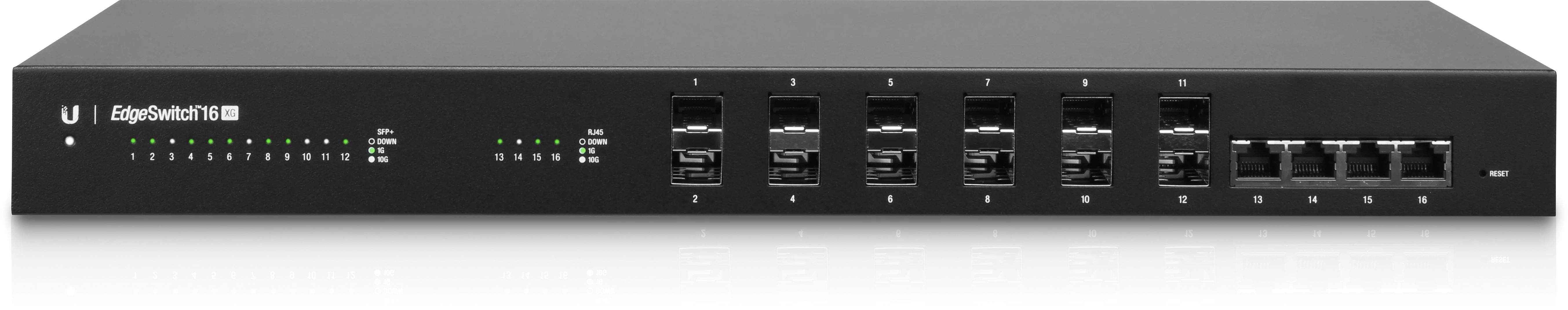

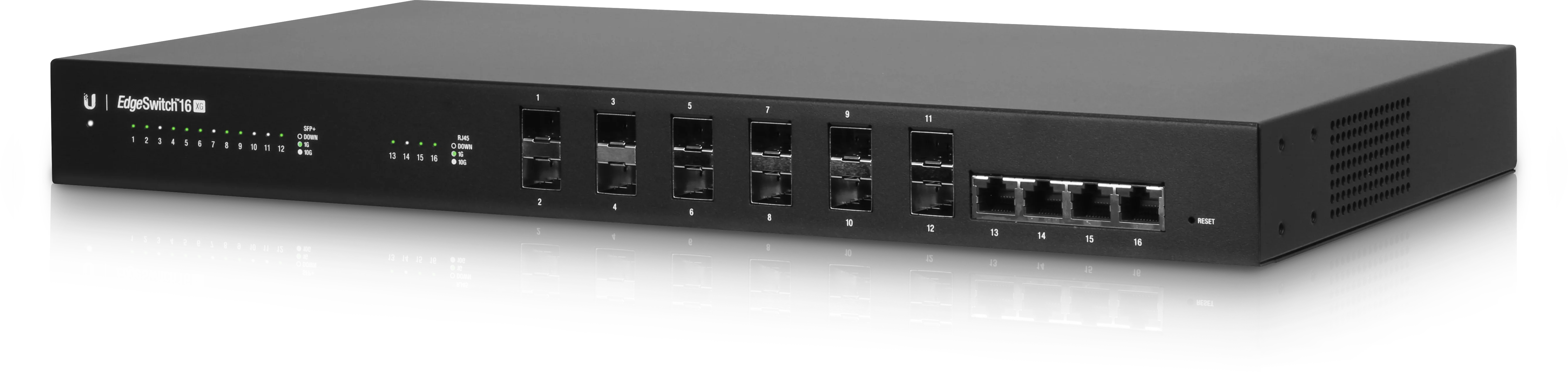

Build and expand your network with Ubiquiti Networks EdgeSwitch 16 XG, part of the EdgeMAX line of products. The EdgeSwitch 16 XG is a fully managed, 10G fiber switch that enhances network capacity and provides high-bandwidth services to growing networks. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability. The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

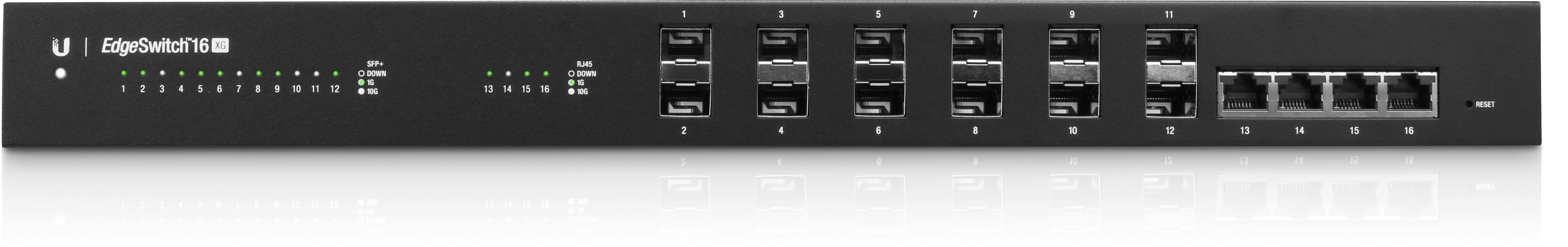

- 12 SFP+ Ports
- 4 10G RJ45 Ports
- 1 RJ45 Serial Console Port
- Non-Blocking Throughput: 160 Gbps
- Switching Capacity: 320 Gbps
- Forwarding Rate: 238.10 Mpps
- Rack Mountable with Rack-Mount Brackets (Included)
- DC Input Option (Redundant or Stand-Alone)

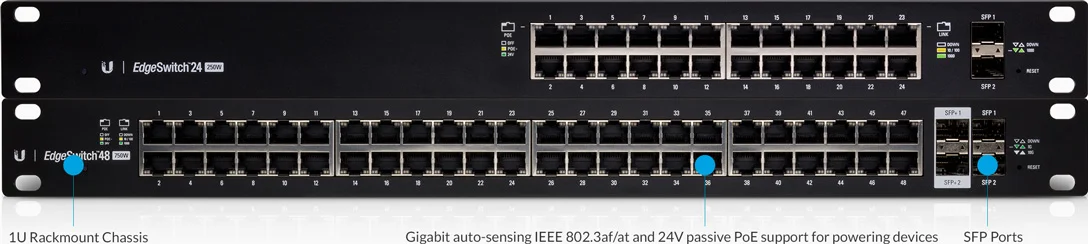

Powerful Enterprise Switch Models
The EdgeSwitch® delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.
The EdgeSwitch® supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Optical Fiber Backhaul
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Convenient PoE+ Support
The EdgeSwitch® features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
The EdgeSwitch® provides top price/performance value: a full-featured, enterprise-class switch.
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
