MikroTik mAP lite

32.19

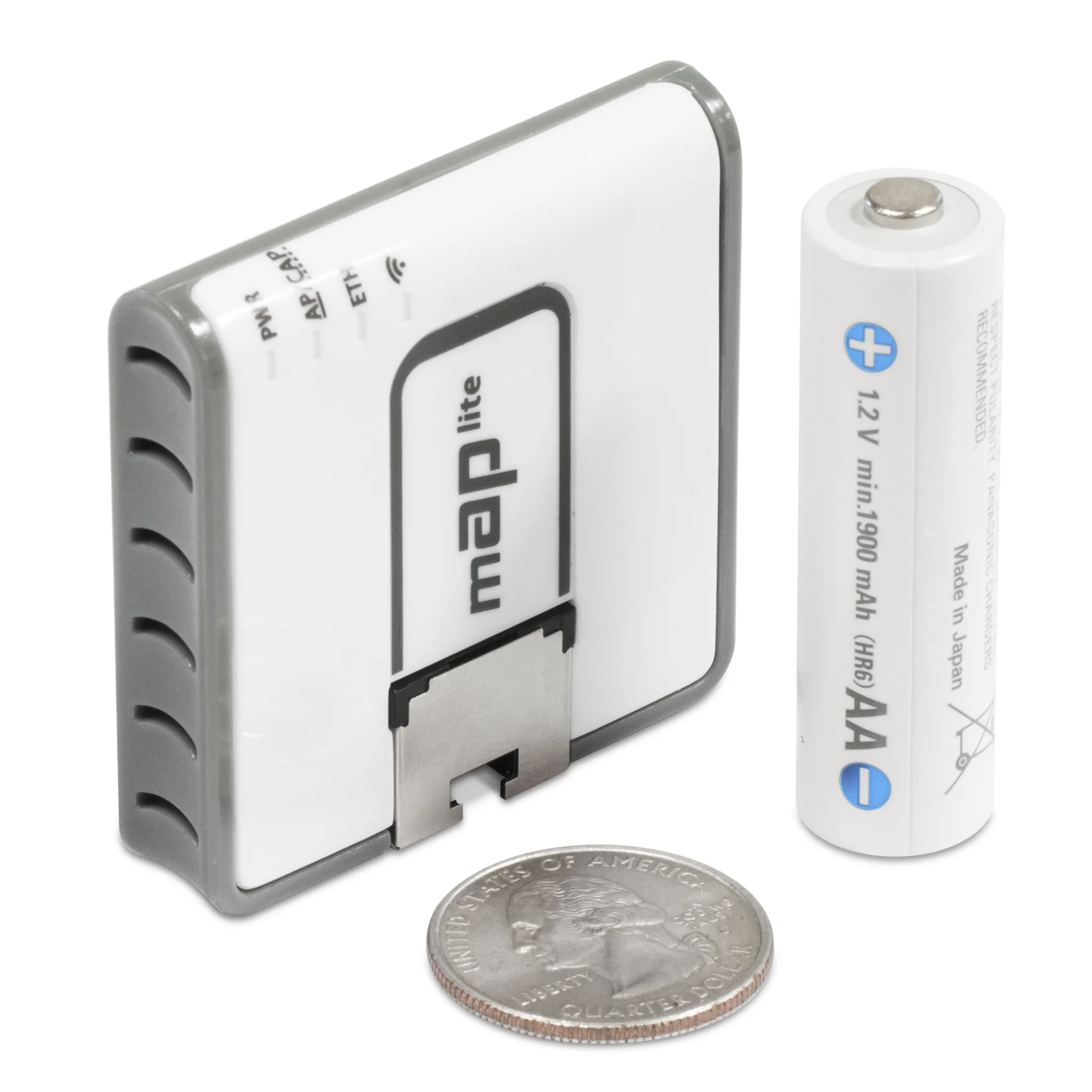

The mAP lite is our smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile.

Uitverkocht

Email when stock is available

Add to Wishlist
Add to Wishlist

MikroTik mAP lite

The mAP lite is our smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile.

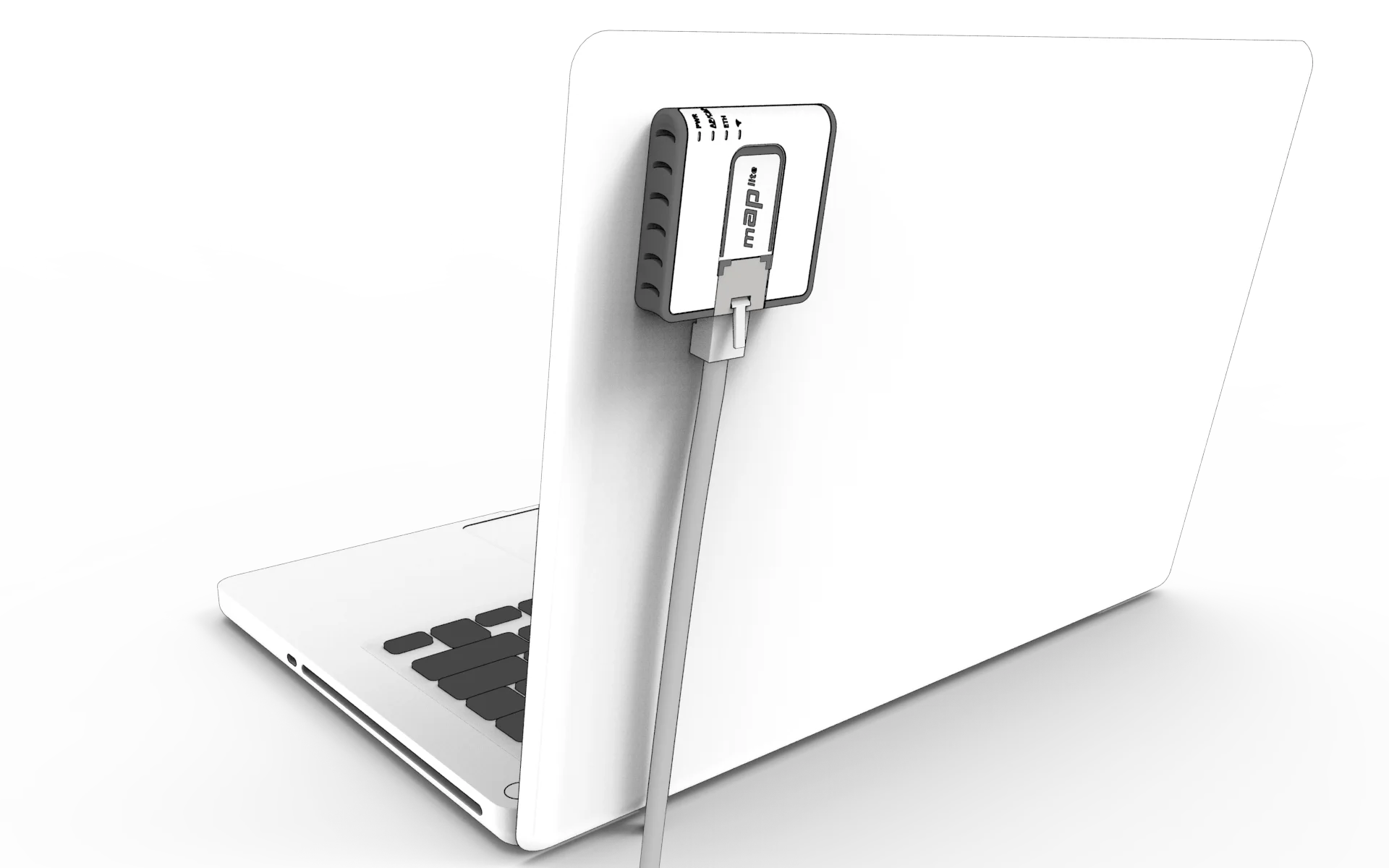

You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you.

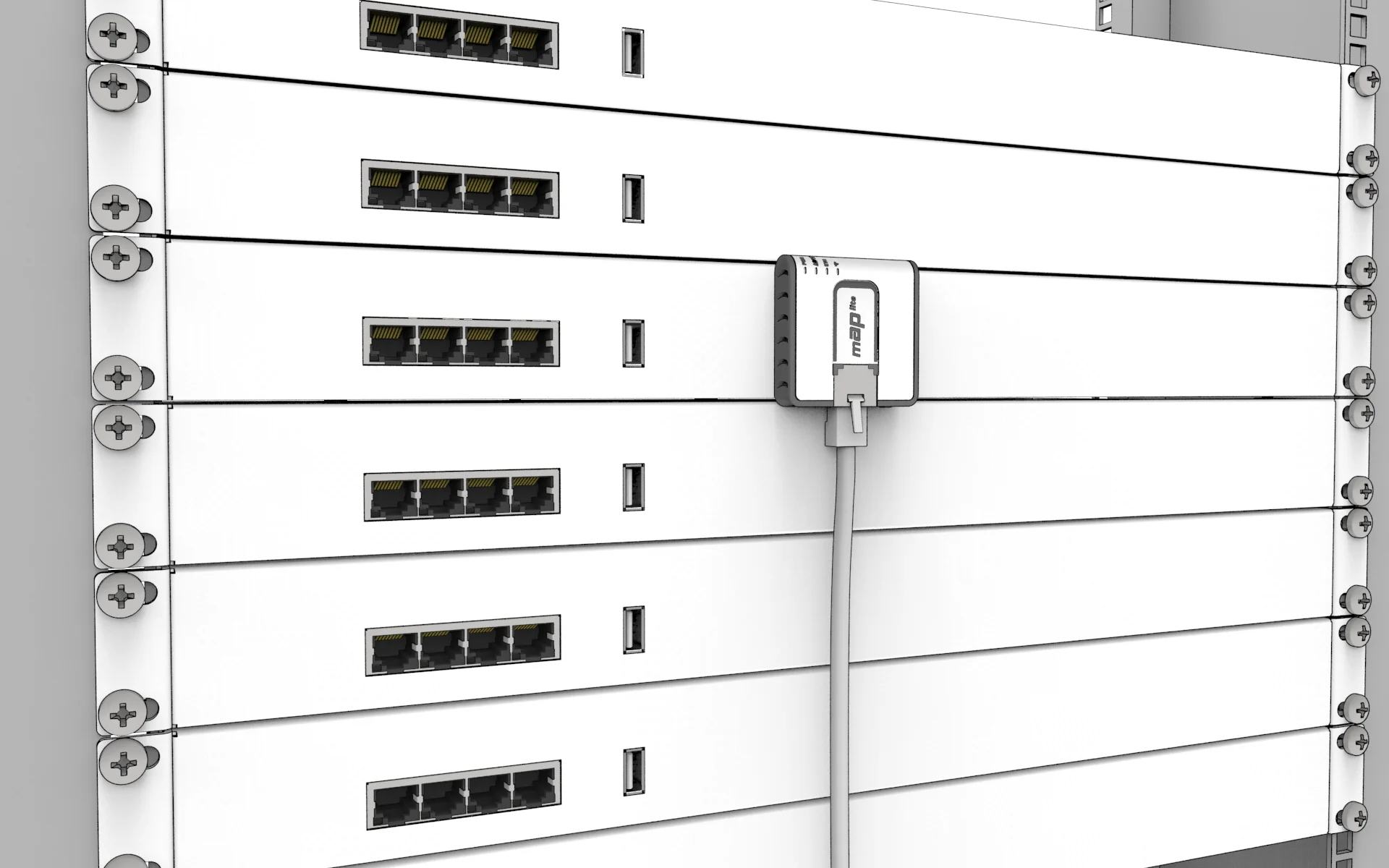

It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device.

The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.

Specifications

Details
Product codeRBmAPL-2nD
ArchitectureMIPSBE
CPUQCA9533
CPU core count1
CPU nominal frequency650 MHz
Dimensions48x49x11mm
RouterOS license4
Operating SystemRouterOS
Size of RAM64 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 100’000 hours at 25C
Tested ambient temperature-30°C to 70°C
Suggested price$25.00

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate300 Mbit/s
Wireless 2.4 GHz number of chains2
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz1.5
Wireless 2.4 GHz chip modelQCA9533
Wireless 2.4 GHz generationWi-Fi 4

Ethernet

Details
10/100 Ethernet ports1

Powering

Details
MicroUSB input Voltage5-5 V
Number of DC inputs2 (PoE-IN, MicroUSB)
Max power consumption3.5 W
Cooling typePassive
PoE in802.3af/at
PoE in input Voltage10-60 V

Certification & Approvals

Details
CertificationCE, FCC, IC, EAC, ROHS
IPIP20

Wireless specifications

2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s22-96
11MBit/s22-89
6MBit/s20-93
54MBit/s18-74
MCS020-93
MCS716-71

Source: MikroTik
