MikroTik hAP ac3 LTE6 kit
Forget about endless searching for the perfect router and scrolling through an eternity of reviews and specifications! We have created a single affordable home access point (hAP ac3 LTE6 kit) that has all the features you might need for years to come.
The hAP ac3 LTE6 kit features our newest CAT6 LTE modem. It enables carrier aggregation, allowing you to use the LTE connection with speed up to 300 Mbps.
It works by using multiple LTE bands at the same time. A huge advantage when there are a lot of LTE users in the area. Depending on the service provider, we have seen Internet speed doubling after switching to CAT6.

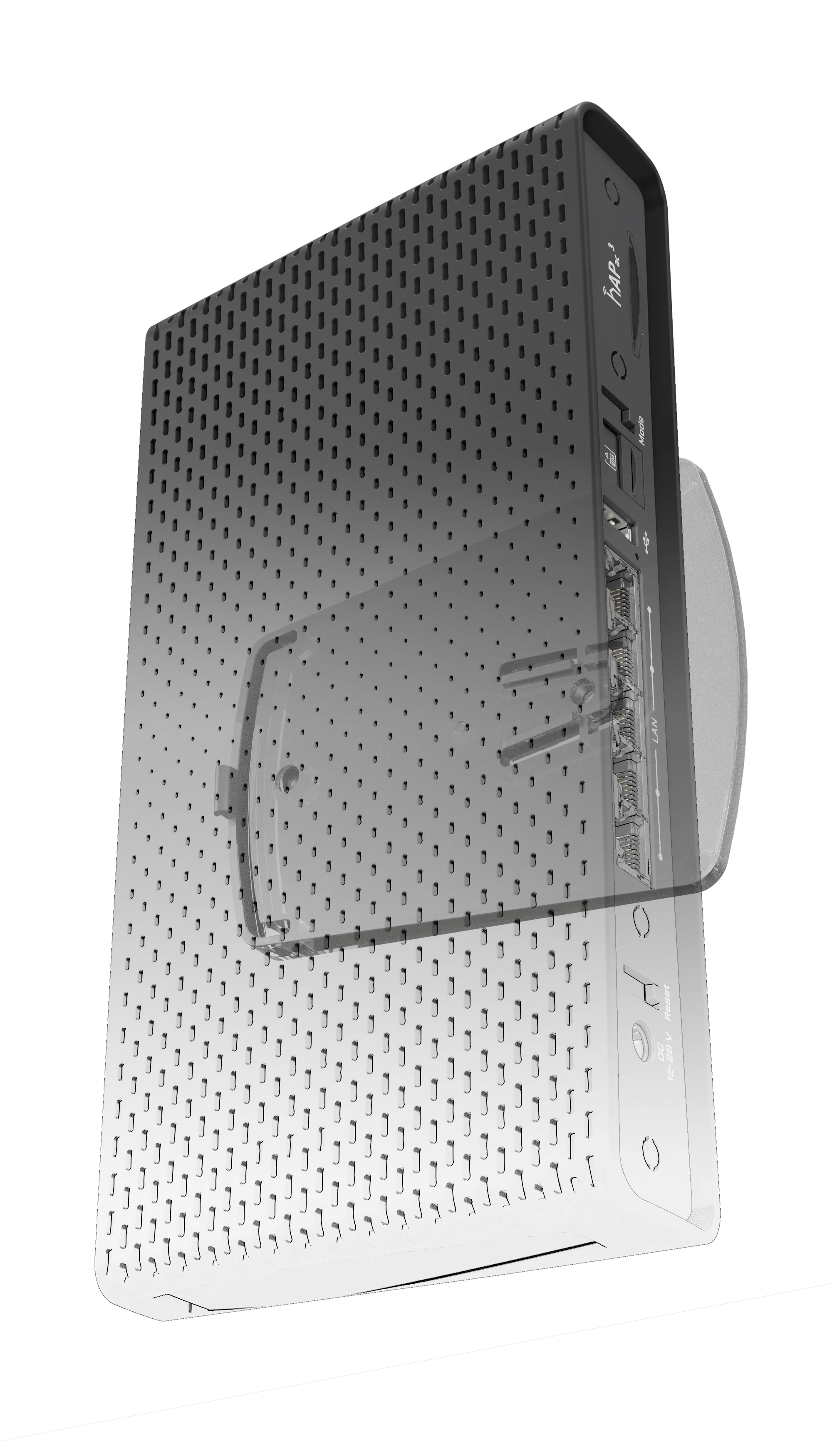

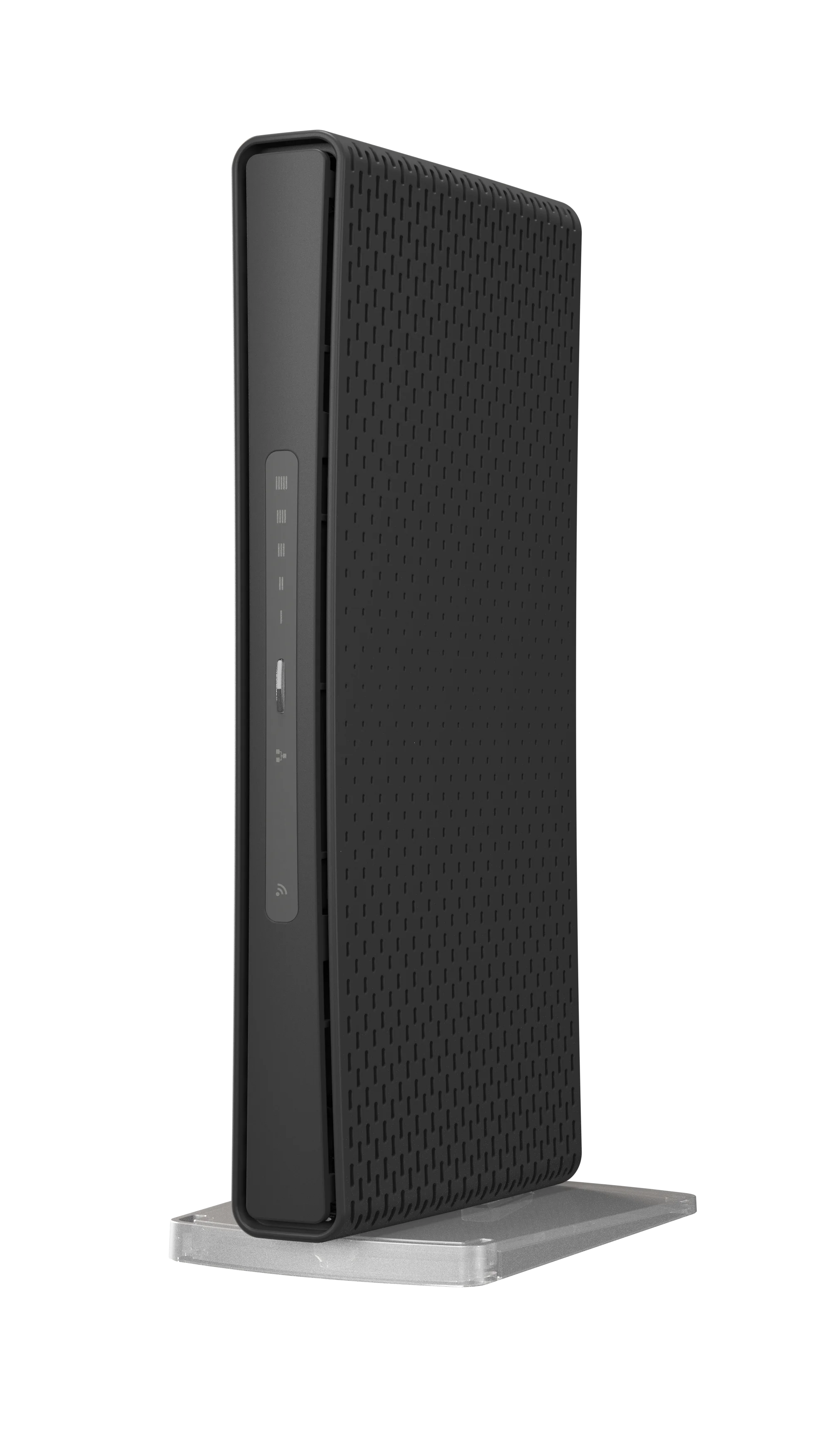

With 5 Gigabit Ethernet ports, 256 MB of RAM and quadcore CPU, hAP ac3 LTE6 kit can satisfy even the biggest and most demanding households. There is a full-size USB port that you can use to add extra storage. The new enclosure allows mounting the device vertically or horizontally. A wall mount set for the hAP ac3 LTE6 kit is also included.
Stop sharing the frequency with all your neighbors! Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. This is a must-have these days! You can use the 2.4 GHz channel for older devices and the 5 GHz channel for everything else, since this frequency is less cluttered.
Specifications
Details |
---|
Product code | RBD53GR-5HacD2HnD&R11e-LTE6 |
Architecture | ARM 32bit |
CPU | IPQ-4019 |
CPU core count | 4 |
CPU nominal frequency | 716 MHz |
Dimensions | 251 x 129 x 39 mm |
RouterOS license | 4 |
Operating System | RouterOS |
Size of RAM | 256 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 200’000 hours at 25C |
Tested ambient temperature | -30°C to 60°C |
IPsec hardware acceleration | Yes |
Suggested price | $219.00 |
Powering
Details |
---|
Number of DC inputs | 1 (DC jack) |
DC jack input Voltage | 12-28 V |
Max power consumption | 20 W |
Max power consumption without attachments | 16 W |
Cooling type | Passive |
Mobile
Details |
---|
2G Category | Class12 |
2G bands | 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
3G bands | 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
LTE Category | 6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
LTE FDD bands | 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz) |
LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz) |
Wireless specifications
Details |
---|
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 3 |
Wireless 2.4 GHz chip model | IPQ-4019 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Wireless 5 GHz Max data rate | 867 Mbit/s |
Wireless 5 GHz number of chains | 2 |
Wireless 5 GHz standards | 802.11a/n/ac |
Antenna gain dBi for 5 GHz | 5.5 |
Wireless 5 GHz chip model | IPQ-4019 |
Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
Details |
---|
10/100/1000 Ethernet ports | 5 |
Peripherals
Details |
---|
Number of SIM slots | 1 Modem (Micro SIM) |
MiniPCI-e slots | 1 |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
Other
Certification & Approvals
Details |
---|
Certification | CE, FCC, IC, EAC, ROHS |
IP | IP20 |
Source: MikroTik
